Product

FLAT BED COMPOUND FEED HEAVY DUTY LOCKSTITCH SEWING MACHINE


TK-545 SINGLE NEEDLE	TK-546 DOUBLE NEEDLE (1/4" - 2")

THIS SINGLE (TWO) NEEDLE FLAT-BED MACHINE IS EQUIPPED WITH AN EXTRA LARGE VERTICAL HOOK HOUSING

THIS MACHINE IS SUITABLE FOR SEWING PROPLEM MATERIALS THAT HAS SLIPPERY OR TACKY SURFACES AND CAN JOIN SEVERAL PLIES OF THICKNESS WELL WITHOUT INTER-PLY SHIFTING.

LARGE VERTICAL SEWING HOOK WITH A 60% LARGER BOBBIN THREAD CAPACITY THAN STANDARD SIZE HOOKS.

SPECIFICATIONS:
SPEED	: 2800 S.P.M. / TK-1245
	: 2500 S.P.M. / TK-1246
MAX. STITCH LENGTH	: 6MM
FABRIC THICHNESS	: 14MM / TK1245
	: 8.5MM / TK-1246
NEEDLE	: DP X 17#14,16,18,20
MOTOR	: 1/3 H.P. CLUTCH MOTOR
N.W.	: 38 KGS
G.W.	: 40 KGS
MEASUREMENT	: 0.10 CBM


TK-1245 SINGLE NEEDLE	TK-1246 BOUBLE NEEDLE(1/4" - 2")

WITH CENTRAL RESERVOIR LUBRICATION AND HOOK LUBRICATION

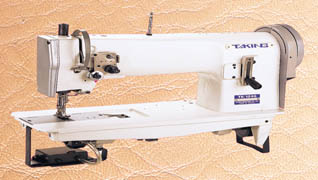

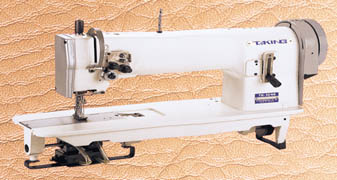

FLAT BED COMPOUND FEED HEAVY DUTY LOCKSTITCH SEWING MACHINE (LONG ARM)


TK-1245L SINGLE NEEDLE	TK1246L DOUBLE NEEDLE (1/4"-2")

THIS SINGLE (TWO) NEEDLE FLAT-BED MACHINE IS EQUIPPED WITH AN EXTRA LARGE VERTICAL HOOK HOUSING, CENTRAL RESERVOIR LUBRICATION AND HOOK LUBRICATION

THIS MACHINE IS SUITABLE FOR SEWING PROPLEM MATERIALS THAT HAS SLIPPERY OR TACKY SURFACES AND CAN JOIN SEVERAL PLIES OF THICKNESS WELL WITHOUT INTER-PLY SHIFTING.

LARGE VERTICAL SEWING HOOK WITH A 60% LARGER BOBBIN THREAD CAPACITY THAN STANDARD SIZE HOOKS.

SPECIFICATIONS:


SPEED	: 2800 S.P.M. / TK-1245L
	: 2500 S.P.M. / TK-1246L
WORKING SPACE	: 500MM
NEEDLE	: DP X 17#14,16,18,20
MOTOR	: 1/3 H.P. CLUTCH MOTOR
N.W.	: 75 KGS
G.W.	: 90 KGS
MEASUREMENT	: 0.238 CBM
